Metus MAM Technical Specs
Back to Metus MAM

Metus MAM Technical Specs

Explore the detailed hardware requirements, system compatibility, and technical features of Metus MAM.

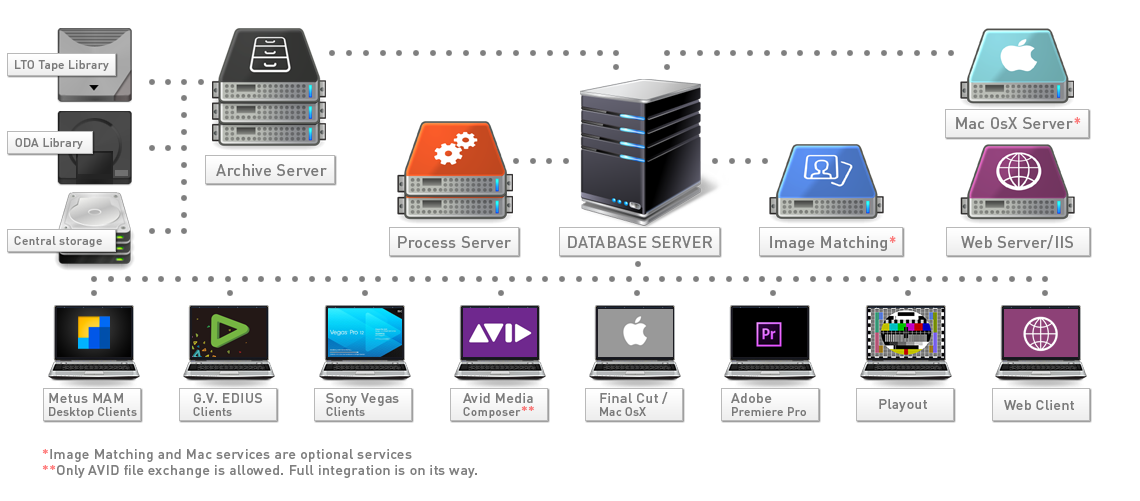

Metus MAM Architecture
Tap to Zoom

Scalability

  • Expandable media asset management and transcoding suite, deployable from a single desktop to hundreds of clients
  • Supports archives up to PBs containing millions of assets
  • Distributed server architecture allows limitless expansion
  • Transcoding can be deployed on a single server or as a server farm with load balancing

Format Support and Video Processing

  • Supported containers: (MPG, M2P, AVI, F4V, MXF, GXF, MOV, XDCAM, MP4, TS, WMV, WAV, M4A, P2, Microsoft Smooth Streaming)
  • Supported essences: (Uncompressed, MPEG2, DV, DVCPRO, DVCPRO50, DVCPROHD100, H.264, AVC-Intra, XAVC, Apple ProRes, IMX, VC-1, PCM, AAC, WMA)
  • Support for proprietary formats via 3rd party components
  • Also supports audio, picture, word, excel, pdf and text files
  • Supports transcoding between supported formats
  • Supports multi channel audio
  • Supports easy cutting and joining of clips
  • Supports partial retrieval with optional transcoding
  • Supports watermarking of video with timecode, logo, etc.

Asset Management Benefits

  • Supports configurable proxy files for network playback
  • Supports playing and editing of growing content, that is still being captured
  • Flexible bin structure independent from file system
  • Built in media player with: mark in/out, fast/slow playback, marker/region definition, video & audio censure, audio channel selection and mapping
  • Flexible metadata structure that can be customised by user without any development
  • Many different types of metadata, per requirement
  • Easy Category assignment
  • Multiple search modes: Simple, Advanced, Category based, Auto Complete, Synonyms, etc.
  • Assets can be archived manually, via interface, or via watch folders ('dynamic bins')
  • Searches can be assigned to bins ('filter bins')
  • Metadata can be automatically assigned to imported assets ('template bins')
  • Different formats and qualities can be automatically generated ('Attachments')
  • Other video and non-video files can be attached (documents, audio files, pictures, subtitle files etc.)

Storage

  • Uses standard off the shelf server hardware
  • Uses industry standard database server such as MS SQL Server
  • Support of any type of storage such as NAS, SAN, DAS
  • Supports nearline-offline storage systems ranging from single tape drive to enterprise tape libraries
  • All components can be installed on single server, or distributed across multiple servers
  • Archives are organized into Archive Projects
  • Supports different failover and redundancy scenarios both at database, application and storage level
  • Information Lifecycle Management: Can move files between online and nearline storage automatically based on user defined rules

Integration

  • Plug-ins for Sony Vegas®, GV EDIUS®, Adobe® Premiere® Pro CC
  • Plug-in for newsroom systems
  • Seamless bi-directional integration with Metus FlashNews
  • Can generate playlists and export to playout servers and automation systems
  • Can generate EDLs and export to editing systems
  • Integration with middleware systems as CMS for WebTV/IPTV platforms
  • Possibility to import assets from third party MAM and databases
  • Import and export of common metadata packs such as MXF, EXIF, IPTC etc.
  • Automatic Custom metadata import and export over XML

Components & OS Support

  • Metus Desktop Client: Windows 10/11
  • Metus Web Client: Firefox, Safari, Chrome
  • NLE Plugins: Sony Vegas® (9, 12), GV EDIUS® (5-X), Adobe® Premiere® Pro CC/2022

Server Components

  • Database Server: Microsoft SQL Server 2019 (all editions)
  • Metus Archive Server (MAS): Windows Server 2019, 64-bit
  • Metus Process Server (MPS): Windows Server 2019, 64-bit
  • Metus Web Server (MOL): Windows Server 2019, 64-bit, IIS 6.0 or later
